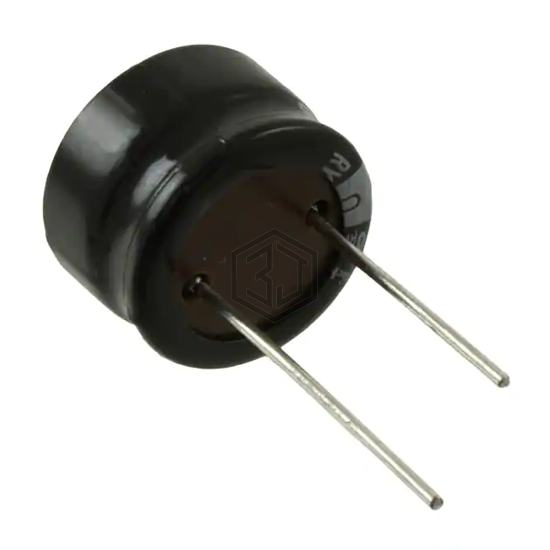

CAP ALUM 1000UF 20% 25V RADIAL
URY1E102MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,135
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 885.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY1E102MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXA1000MEFCT810X20 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 99% | View |
| EKMG250ELL102MJ20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 94% | View |
| MAL211916102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 25V AXIAL | 89% | View |
| UVY1E102MPD1CV | Nichicon | CAP ALUM 25V POLAR | 89% | View |
| ELXZ160ELL102MJ20S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 78% | View |
| ECA-1CHG102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 71% | View |
