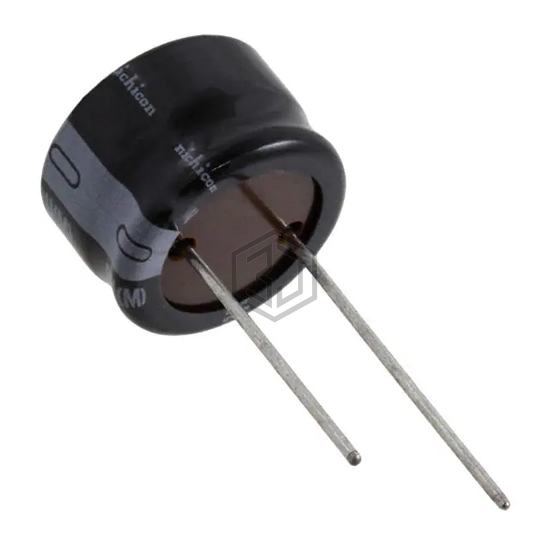

CAP ALUM 33UF 20% 350V RADIAL
URU2V330MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 5,425
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 368 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2V330MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 95% | View |
| UVZ2V330MHD1TN | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 92% | View |
| 517D336M250DK6AE3 | Vishay Sprague | CAP ALUM 33UF 20% 250V RADIAL | 81% | View |
| NEV33M16AA | NTE Electronics, Inc | CAP ALUM 33UF 20% 16V RADIAL | 56% | View |
| MAL214259339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 55% | View |
| ESMG500ELL330ME11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for URU2V330MRD and get a quote within 24 hours.
