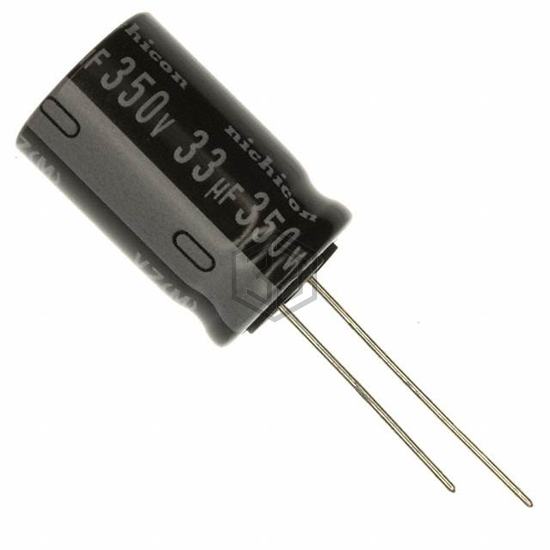

CAP ALUM 33UF 20% 350V RADIAL
UVZ2V330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,234
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 312 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2V330MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG350VB33RM16X25LL | United Chemi-Con | CAP ALUM 33UF 20% 350V RADIAL | 97% | View |
| 517D336M250DK6AE3 | Vishay Sprague | CAP ALUM 33UF 20% 250V RADIAL | 89% | View |
| UAS2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 89% | View |
| MAL214259339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 60% | View |
| MAL213669339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 53% | View |
| 63ZL33MEFCTA6.3X11 | Rubycon | CAP ALUM 33UF 20% 63V RADIAL | 53% | View |
Submit your RFQ for UVZ2V330MHD1TN and get a quote within 24 hours.
