CAP ALUM 330UF 20% 100V RADIAL

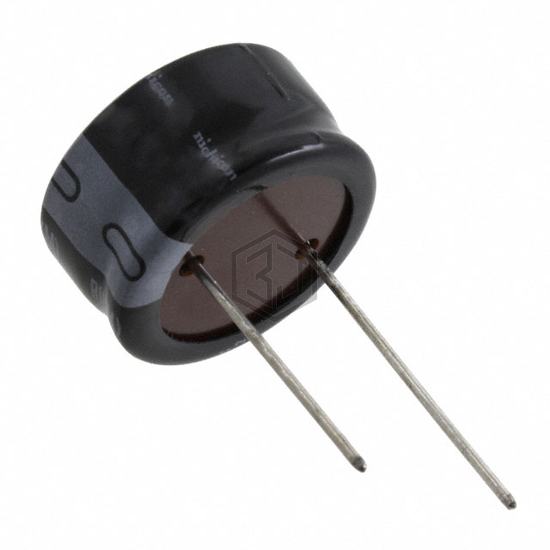

URU2A331MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,749
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 760 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.14 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2A331MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA1626331M100B | KYOCERA AVX | CAP ALUM 100V POLAR | 92% | View |
| EKY-800ELL331MK25S | Chemi-Con | CAP ALUM 80V POLAR | 86% | View |
| UBW2A331MHD | Nichicon | CAP ALUM 330UF 20% 100V RADIAL | 85% | View |
| ELXV500EMC331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| SEK331M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| B43505A2337M87 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 52% | View |
