CAP ALUM 330UF 20% 100V RADIAL

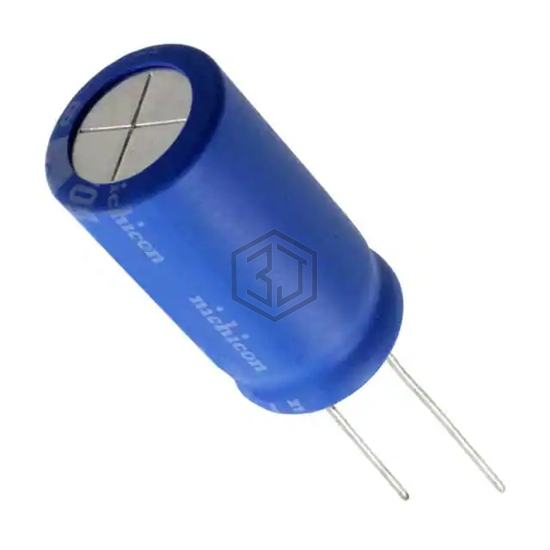

UBW2A331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 895 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.79 A @ 100 kHz |
| Impedance | 79 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW2A331MPD | Nichicon | CAP ALUM 330UF 20% 100V RADIAL | 100% | View |
| UBW1H331MHD1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 68% | View |
| UBW1H331MHD | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 68% | View |
| MAL216065331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 62% | View |
| MAL216035331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 62% | View |
| MAL216061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for UBW2A331MHD and get a quote within 24 hours.
