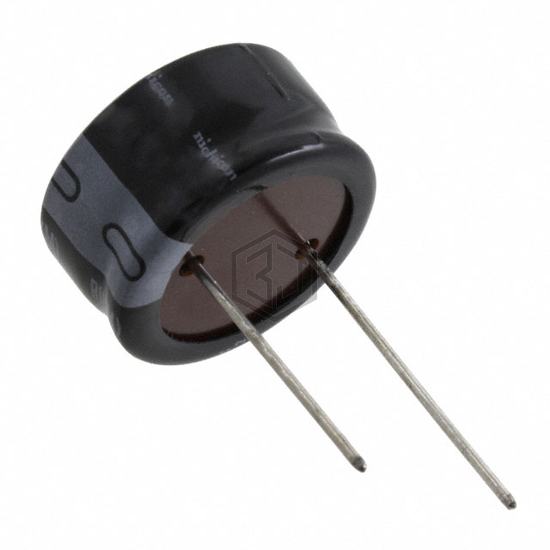

CAP ALUM 1000UF 20% 50V RADIAL
URU1H102MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,486
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0695 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU1H102MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1H102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 99% | View |
| MAL215051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 87% | View |
| 381LX102M080K202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 80V SNAP | 73% | View |
| 860160680034 | Würth Elektronik | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
| EEU-FM1A102LBJ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 64% | View |
| MAL214835102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
