Cornell Dubilier Electronics (CDE)
CAP ALUM 1000UF 20% 80V SNAP

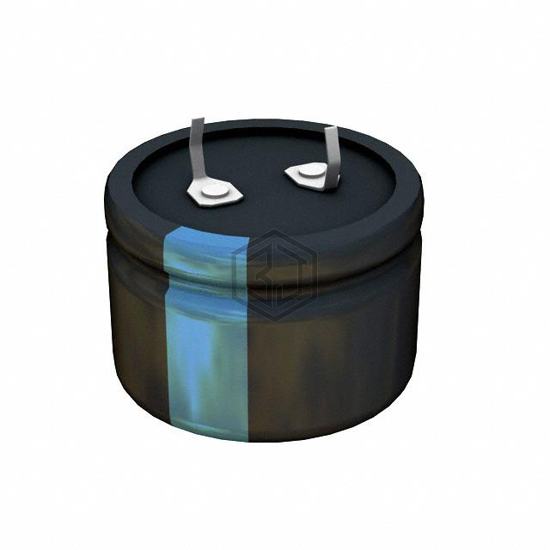

381LX102M080K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 9,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1A102LBJ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 76% | View |
| MAL215051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 76% | View |
| EEU-HD1H102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 74% | View |
| ELXV350ETS102ML20S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 70% | View |
| 672D108F6R3EK5D | Vishay Sprague | CAP ALUM 1000UF 6.3V RADIAL | 66% | View |
| EKZH350ELL102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 60% | View |
Submit your RFQ for 381LX102M080K202 and get a quote within 24 hours.
