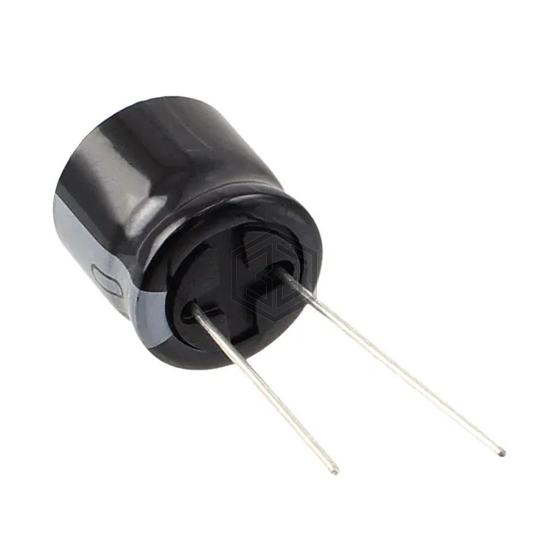

CAP ALUM 10UF 20% 400V RADIAL
URS2G100MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 224 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204225109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 350V AXIAL | 92% | View |
| ESG106M400AH4EA | KEMET | CAP ALUM RAD 105C | 89% | View |
| NEVH10M250CC | NTE Electronics, Inc | CAP ALUM 10UF 250V RADIAL | 70% | View |
| UPS2G100MHD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 68% | View |
| URY2V100MHD1TN | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 66% | View |
| UBT2D100MPD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 54% | View |
Submit your RFQ for URS2G100MHD and get a quote within 24 hours.
