CAP ALUM 10UF 20% 400V RADIAL

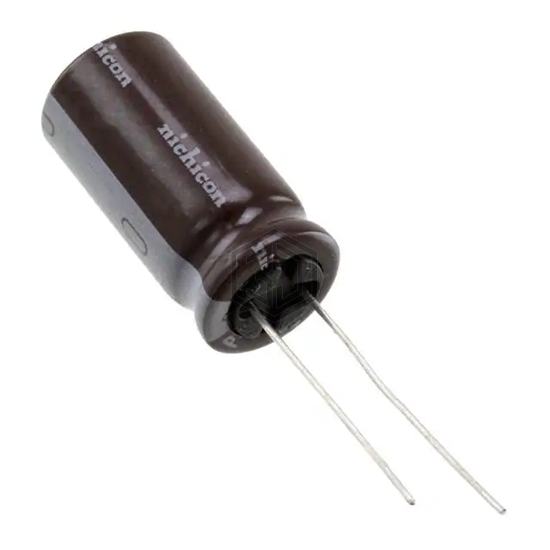

UPS2G100MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 190
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 72 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPS2G100MHD and get a quote within 24 hours.
