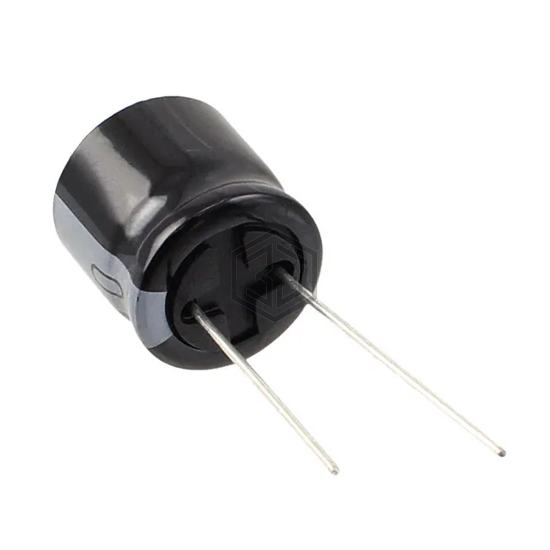

CAP ALUM 22UF 20% 250V RADIAL
URS2E220MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V220MPD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 84% | View |
| MAL211892229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V AXIAL | 77% | View |
| 610D226F150DR2 | Vishay Sprague | CAP ALUM 22UF 150V AXIAL | 67% | View |
| 350PX22MEFCG412.5X20 | Rubycon | CAP ALUM 22UF 20% 350V RADIAL | 66% | View |
| 600D226F250DL4E3 | Vishay Sprague | CAP ALUM 22UF 250V AXIAL | 57% | View |
| SEK220M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V RADIAL | 56% | View |
