CAP ALUM 22UF 20% 350V RADIAL

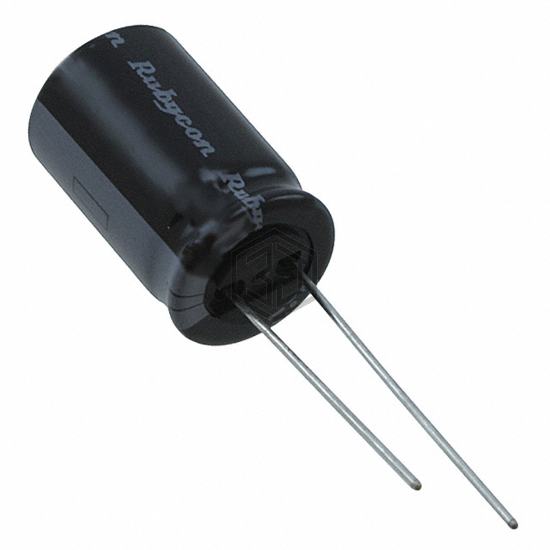

350PX22MEFCG412.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 6,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 262.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG351ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 350V RADIAL | 90% | View |
| MAL215296223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 89% | View |
| MAL211892229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V AXIAL | 73% | View |
| EEU-FC1V220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 59% | View |
| 610D226F150DR2 | Vishay Sprague | CAP ALUM 22UF 150V AXIAL | 56% | View |
| 510D226M016AA3D | Vishay Sprague | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for 350PX22MEFCG412.5X20 and get a quote within 24 hours.
