CAP ALUM 3300UF 20% 10V RADIAL

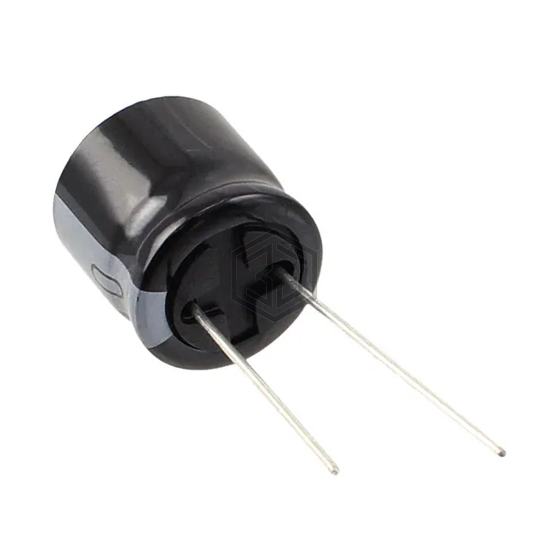

URS1A332MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.495 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 79% | View |
| UPA0J332MHD | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 75% | View |
| PF1H332MNN1832 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 74% | View |
| B41505F7338M7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V SNAP | 67% | View |
| 50MXG3300MEFCSN22X30 | Rubycon | CAP ALUM 3300UF 20% 50V SNAP | 59% | View |
| B41252A6338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 50V SNAP | 54% | View |
Submit your RFQ for URS1A332MHD and get a quote within 24 hours.
