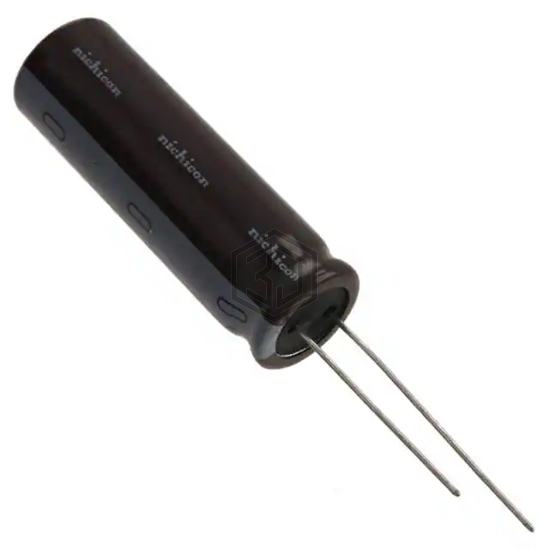

CAP ALUM 56UF 20% 450V RADIAL
UPZ2W560MNY9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PW2W560MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 96% | View |
| LGU2W560MELY | Nichicon | CAP ALUM 56UF 20% 450V SNAP | 96% | View |
| 500LXW56MEFR16X35 | Rubycon | CAP ALUM 56UF 20% 500V RADIAL | 95% | View |
| LGR2W560MELZ35 | Nichicon | CAP ALUM 56UF 20% 450V SNAP | 94% | View |
| 420LXW56MEFR16X20 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 92% | View |
| LGU2G560MELY | Nichicon | CAP ALUM 56UF 20% 400V SNAP | 92% | View |
Submit your RFQ for UPZ2W560MNY9 and get a quote within 24 hours.
