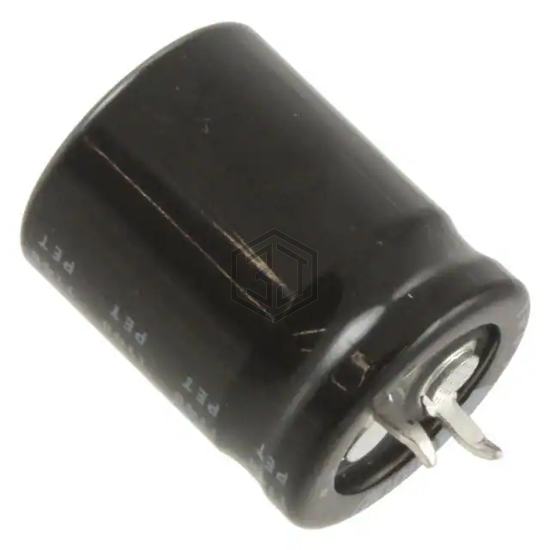

CAP ALUM 56UF 20% 400V SNAP
LGU2G560MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 729.3 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PW2W560MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 95% | View |
| LGR2W560MELZ35 | Nichicon | CAP ALUM 56UF 20% 450V SNAP | 92% | View |
| UPZ2W560MNY9 | Nichicon | CAP ALUM 56UF 20% 450V RADIAL | 92% | View |
| EKMM451VSN560MP25S | United Chemi-Con | CAP ALUM 56UF 20% 450V SNAP | 85% | View |
| 450BXW56MEFR14.5X35 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 77% | View |
| 500LXW56MEFR16X35 | Rubycon | CAP ALUM 56UF 20% 500V RADIAL | 76% | View |
Submit your RFQ for LGU2G560MELY and get a quote within 24 hours.
