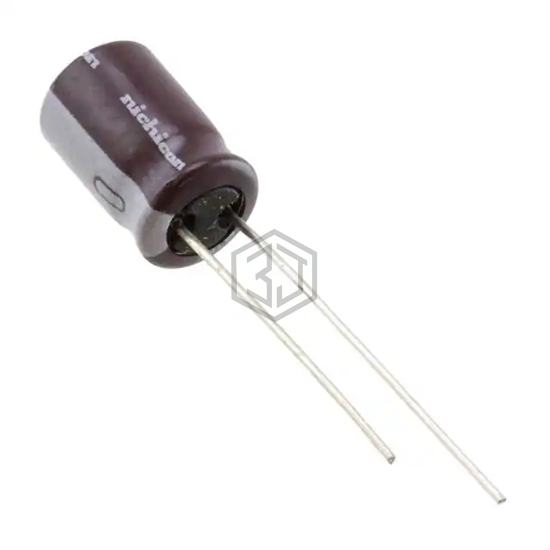

CAP ALUM 3.3UF 20% 160V RADIAL
UPW2C3R3MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 3,752
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2C3R3MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA08123R3M200B | KYOCERA AVX | CAP ALUM 200V POLAR | 90% | View |
| UPS2E3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 77% | View |
| UVY2A3R3MDD1TD | Nichicon | CAP ALUM 3.3UF 20% 100V RADIAL | 74% | View |
| EEU-FC1H3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V RADIAL | 66% | View |
| 400LLE3.3MEFC8X11.5 | Rubycon | CAP ALUM 3.3UF 20% 400V RADIAL | 63% | View |
| 860160672004 | Würth Elektronik | CAP ALUM 3.3UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UPW2C3R3MPD1TA and get a quote within 24 hours.
