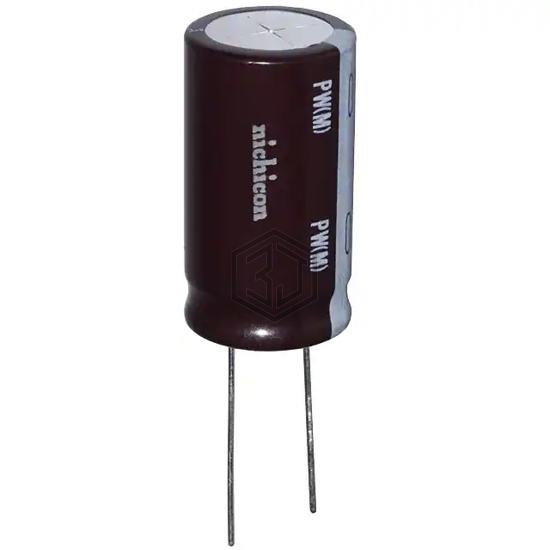

CAP ALUM 330UF 20% 160V RADIAL
UPW2C331MRH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,768
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.035 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2C331MRH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2D331MHD | Nichicon | CAP ALUM 330UF 20% 200V RADIAL | 85% | View |
| 381LX331M200A202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 200V SNAP | 80% | View |
| B43508F2337M7 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 74% | View |
| SEK331M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 100V RADIAL | 70% | View |
| LGJ2E331MELC | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 68% | View |
| B43505C2337M80 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 67% | View |
Submit your RFQ for UPW2C331MRH and get a quote within 24 hours.
