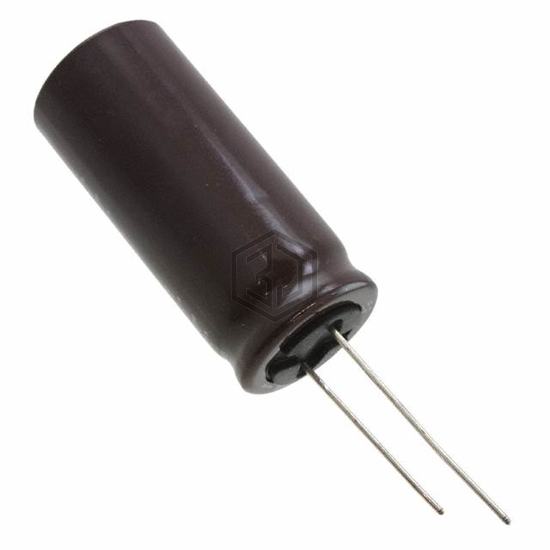

CAP ALUM 330UF 20% 200V RADIAL
UAS2D331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 910 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.456 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43254A1337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 160V SNAP | 89% | View |
| LGJ2E331MELC | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 83% | View |
| B43505C2337M80 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 77% | View |
| MAL211927331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 40V AXIAL | 59% | View |
| B43504B9337M82 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 55% | View |
| B43504A9337M62 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 55% | View |
Submit your RFQ for UAS2D331MHD and get a quote within 24 hours.
