CAP ALUM 560UF 20% 35V RADIAL

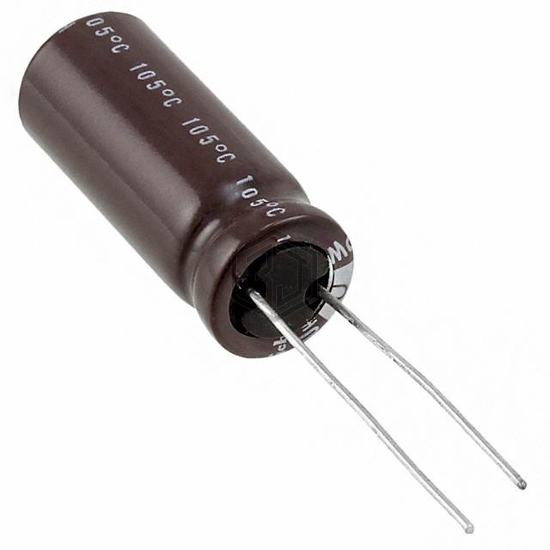

UPW1V561MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,259
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.44 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V561MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1V561MHD1TO | Nichicon | CAP ALUM 560UF 20% 35V RADIAL | 97% | View |
| ELXZ350ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 92% | View |
| UPA1E561MPD6 | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 84% | View |
| MAL214668561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 74% | View |
| UBX1J561MHL | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
| B41888C4567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 16V RADIAL | 68% | View |
