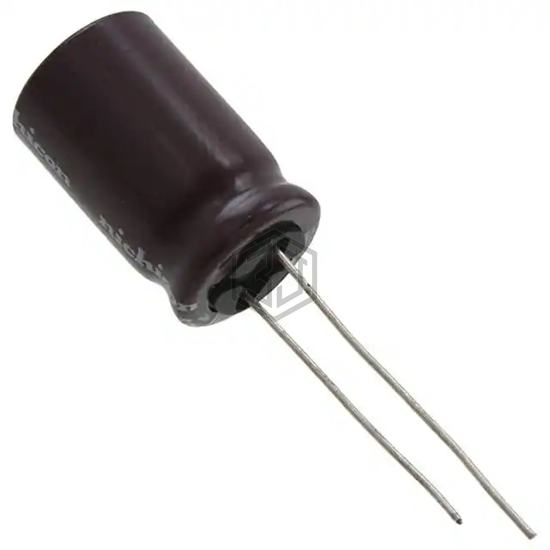

CAP ALUM 560UF 20% 35V RADIAL
UPM1V561MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,422
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 10 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V561MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ350ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 89% | View |
| ELXY350ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 86% | View |
| UPA1E561MPD6 | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 81% | View |
| ELXV500ELL561MK30S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 80% | View |
| UBX1J561MHL | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 70% | View |
| EEU-FC1J561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 66% | View |
