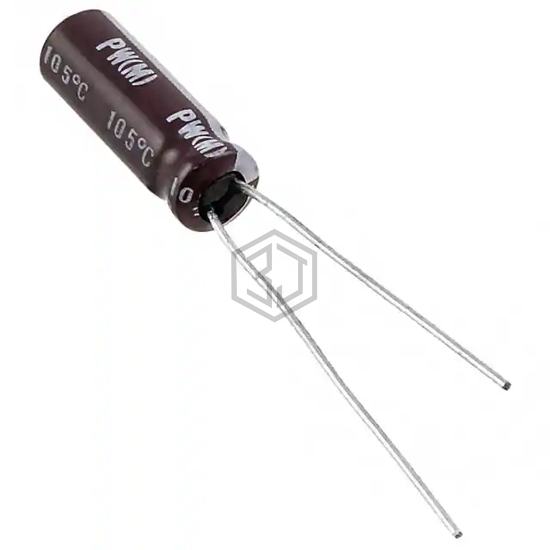

CAP ALUM 39UF 20% 35V RADIAL
UPW1V390MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,462
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V390MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1H390MGD1TA | Nichicon | CAP ALUM 39UF 20% 50V RADIAL | 85% | View |
| ELXV500ELL390MFB5D | United Chemi-Con | CAP ALUM 39UF 20% 50V RADIAL | 80% | View |
| 860160573006 | Würth Elektronik | CAP ALUM 39UF 20% 35V RADIAL | 76% | View |
| EEU-FC1E390B | Panasonic Electronic Components | CAP ALUM 39UF 20% 25V RADIAL | 69% | View |
| 860160673014 | Würth Elektronik | CAP ALUM 39UF 20% 50V RADIAL | 64% | View |
| EEA-FC1A390H | Panasonic Electronic Components | CAP ALUM 39UF 20% 10V RADIAL | 58% | View |
