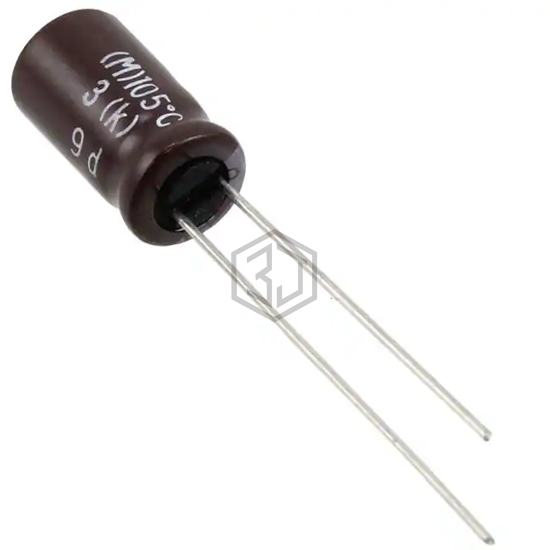

CAP ALUM 39UF 20% 50V RADIAL
ELXV500ELL390MFB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 39UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 102 mA @ 120 Hz |
| Ripple Current @ High Frequency | 255 mA @ 100 kHz |
| Impedance | 560 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1H390MGD | Nichicon | CAP ALUM 39UF 20% 50V RADIAL | 97% | View |
| UPJ1H390MED | Nichicon | CAP ALUM 39UF 20% 50V RADIAL | 90% | View |
| 860160673014 | Würth Elektronik | CAP ALUM 39UF 20% 50V RADIAL | 84% | View |
| 860160573006 | Würth Elektronik | CAP ALUM 39UF 20% 35V RADIAL | 77% | View |
| 860160372006 | Würth Elektronik | CAP ALUM 39UF 20% 16V RADIAL | 57% | View |
| EEA-FC1A390H | Panasonic Electronic Components | CAP ALUM 39UF 20% 10V RADIAL | 54% | View |
