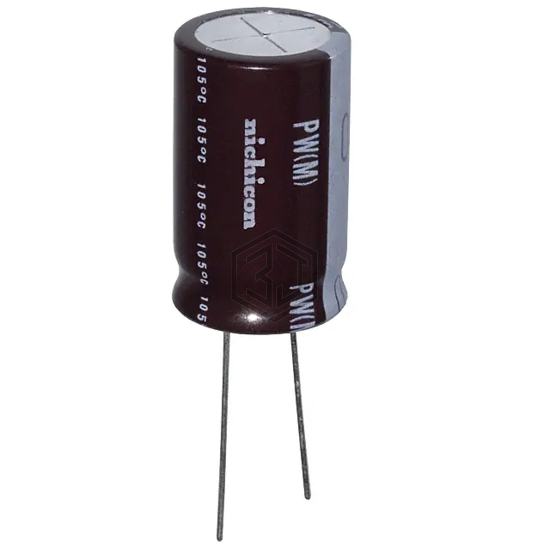

CAP ALUM 2700UF 20% 35V RADIAL
UPW1V272MHH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.635 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V272MHH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214696273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 72% | View |
| 860160478035 | Würth Elektronik | CAP ALUM 2700UF 20% 25V RADIAL | 64% | View |
| 757D278M010DT3D | Vishay Sprague | CAP ALUM 2700UF 20% 10V RADIAL | 63% | View |
| B41890A4278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 16V RADIAL | 60% | View |
| UPA1C272MHD | Nichicon | CAP ALUM 2700UF 20% 16V RADIAL | 59% | View |
| EEU-FK1A272L | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RAD TH | 55% | View |
Submit your RFQ for UPW1V272MHH6 and get a quote within 24 hours.
