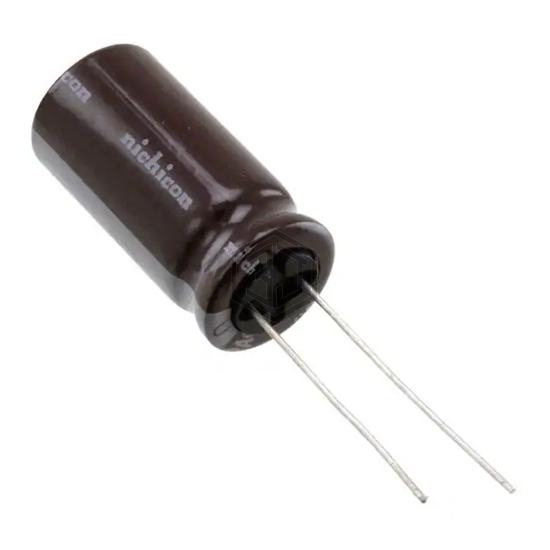

CAP ALUM 2700UF 20% 16V RADIAL
UPA1C272MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.938 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896D4278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 16V RADIAL | 92% | View |
| B41890A4278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 16V RADIAL | 89% | View |
| MAL213635272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 88% | View |
| EEU-FK1C272S | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RAD TH | 88% | View |
| ELXZ250ELL272MK40S | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 78% | View |
| 757D278M010DT3D | Vishay Sprague | CAP ALUM 2700UF 20% 10V RADIAL | 76% | View |
Submit your RFQ for UPA1C272MHD and get a quote within 24 hours.
