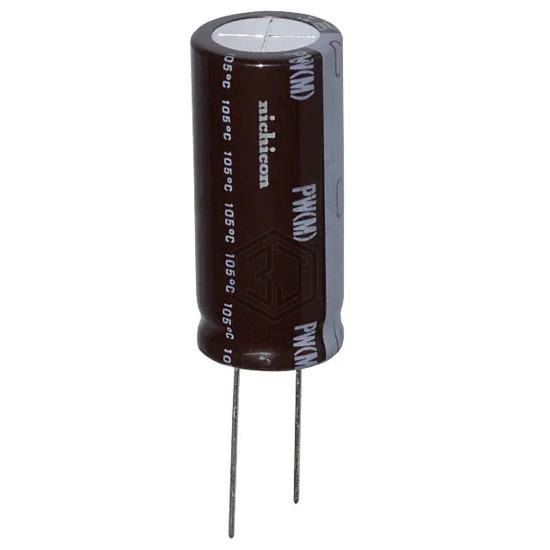

CAP ALUM 2200UF 20% 63V RADIAL
UPW1J222MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,793
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J222MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225058222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V RADIAL | 94% | View |
| B41695B7228Q001 | EPCOS - TDK Electronics | CAP ALUM 2200UF 40V AXIAL | 73% | View |
| VPR222U040N2L | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 40V RADIAL | 69% | View |
| B41858C5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 69% | View |
| MAL216065222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 67% | View |
| MAL214036222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
