Vishay Beyschlag/Draloric/BC Components

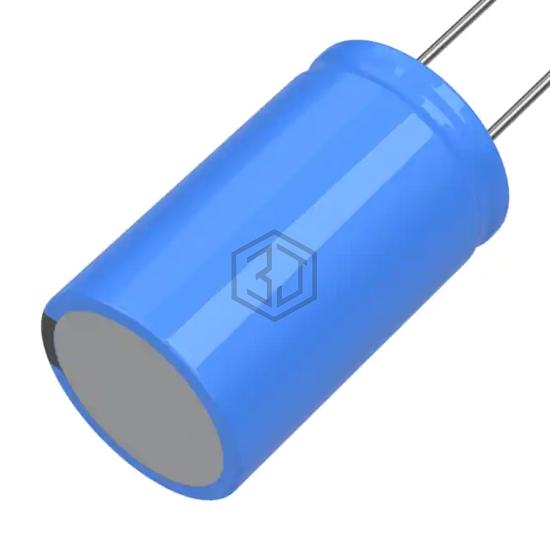

CAP ALUM 2200UF 20% 63V RADIAL
MAL225058222E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 2200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Audio, Automotive |
| Ripple Current @ Low Frequency | 2.356 A @ 100 Hz |
| Ripple Current @ High Frequency | 3.1 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK222M1EBK-1335S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 72% | View |
| VPR222U040N2L | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 40V RADIAL | 68% | View |
| EEU-FC1C222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 67% | View |
| MAL214036222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 64% | View |
| MAL216065222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 63% | View |
| MAL214055222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 61% | View |
Submit your RFQ for MAL225058222E3 and get a quote within 24 hours.
