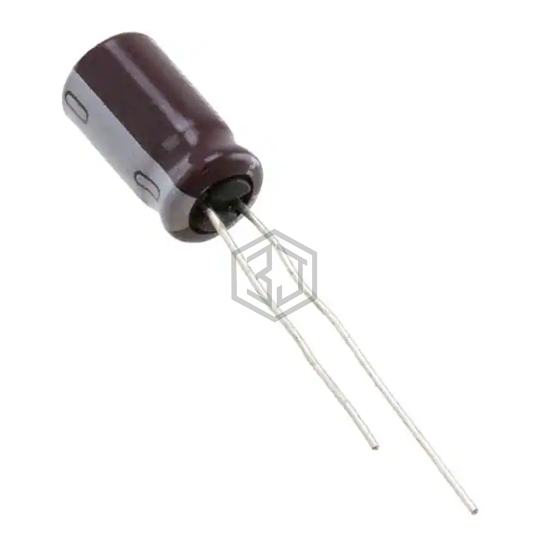

CAP ALUM 22UF 20% 63V RADIAL
UPW1J220MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,363
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 710 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J220MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ630ELL220MFB5D | United Chemi-Con | CAP ALUM 22UF 20% 63V RADIAL | 90% | View |
| 226RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 64% | View |
| 600D226F250DL4 | Vishay Sprague | CAP ALUM 22UF 250V AXIAL | 58% | View |
| MAL211936229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 25V AXIAL | 55% | View |
| 50NXA22MEFC6.3X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 54% | View |
| 226PGM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V RADIAL | 53% | View |
Submit your RFQ for UPW1J220MED1TA and get a quote within 24 hours.
