Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 16V RADIAL

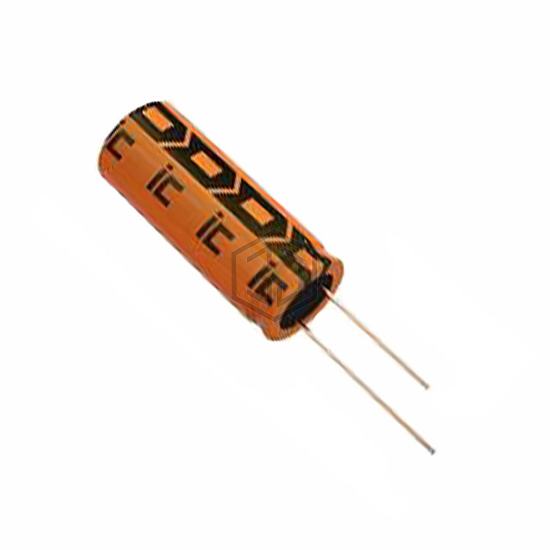

226PGM016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,793
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12.057Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1C220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V RADIAL | 94% | View |
| UKA1C220MDD1TD | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 92% | View |
| UKT1C220MDD | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 92% | View |
| EKMG100ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 10V RADIAL | 78% | View |
| 50NXA22MEFC6.3X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 70% | View |
| MAL211936229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 25V AXIAL | 59% | View |
Submit your RFQ for 226PGM016M and get a quote within 24 hours.
