CAP ALUM 180UF 20% 63V RADIAL

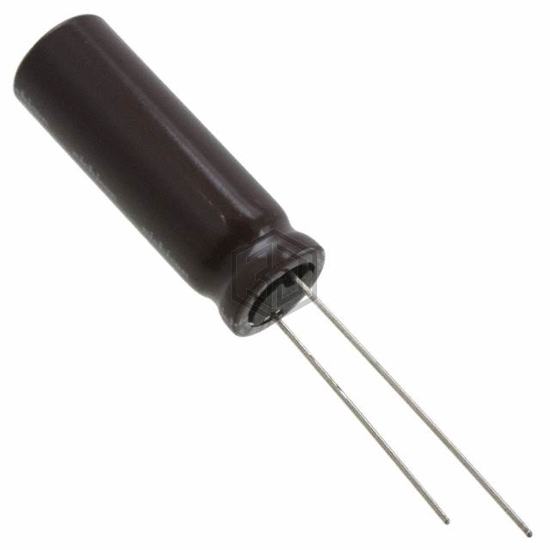

UPM1J181MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 790 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.11 A @ 10 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1J181MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J181SB | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 86% | View |
| EEU-FC2A181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 100V RADIAL | 77% | View |
| B41858D9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 76% | View |
| ELXY500ETD181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 73% | View |
| RF1K181MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 71% | View |
| 601D187F250HP1 | Vishay Sprague | CAP ALUM 180UF 250V AXIAL | 58% | View |
