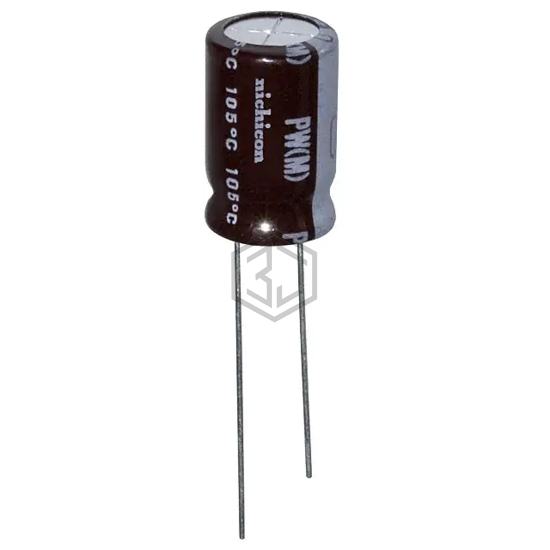

CAP ALUM 150UF 20% 63V RADIAL
UPW1J151MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,293
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 660 mA @ 100 kHz |
| Impedance | 194 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J151MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K151MHD6 | Nichicon | CAP ALUM 150UF 20% 80V RADIAL | 86% | View |
| B41858C6157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 50V RADIAL | 79% | View |
| 157RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 150UF 20% 50V RADIAL | 64% | View |
| B41890A7157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 35V RADIAL | 63% | View |
| 860160473013 | Würth Elektronik | CAP ALUM 150UF 20% 25V RADIAL | 58% | View |
| 672D157F015CG4I | Vishay Sprague | CAP ALUM 150UF 15V RADIAL | 56% | View |
