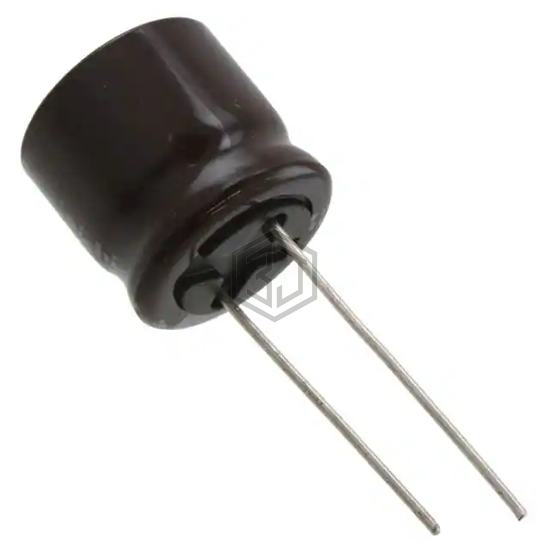

CAP ALUM 150UF 20% 80V RADIAL
UPM1K151MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 9,213
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 180 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K151MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1J151MPH | Nichicon | CAP ALUM 150UF 20% 63V RADIAL | 88% | View |
| UPW1J151MPD | Nichicon | CAP ALUM 150UF 20% 63V RADIAL | 86% | View |
| ELXY630ELL151MJ25S | United Chemi-Con | CAP ALUM 150UF 20% 63V RADIAL | 76% | View |
| B41858C6157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 50V RADIAL | 63% | View |
| B41890A7157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 35V RADIAL | 56% | View |
| 157RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 150UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for UPM1K151MHD6 and get a quote within 24 hours.
