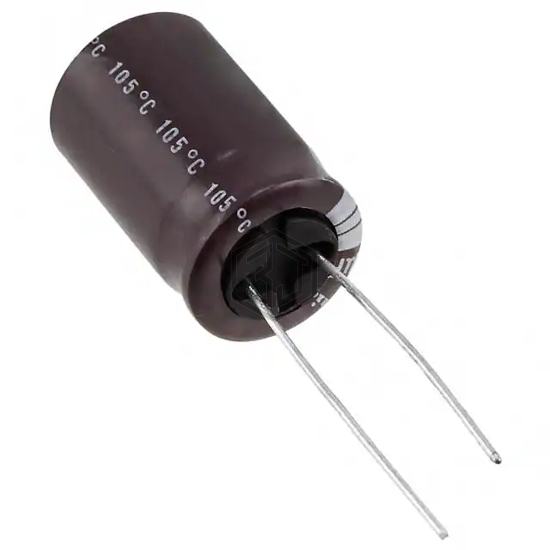

CAP ALUM 470UF 20% 50V RADIAL
UPW1H471MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,147
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.125 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H471MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50WXA470MEFC16X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 100% | View |
| MAL216060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 71% | View |
| 672D477F020EK4D | Vishay Sprague | CAP ALUM 470UF 20V RADIAL | 67% | View |
| EKMQ500EMC471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 59% | View |
| ELXY250ETD471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 58% | View |
| SEK471M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UPW1H471MHD1TO and get a quote within 24 hours.
