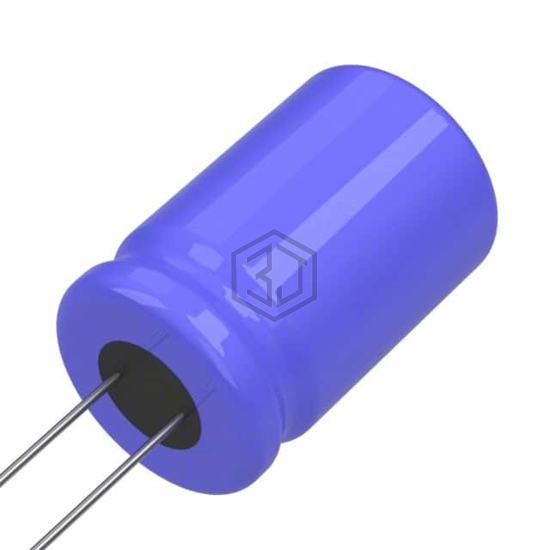

CAP ALUM 470UF 20V RADIAL
672D477F020EK4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 1,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 240mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | 85 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.032" (26.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK471M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 16V RADIAL | 86% | View |
| 50WXA470MEFC16X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| ELXY250ETD471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
| EEU-FC1C471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 55% | View |
| 25PX470MEFCT78X11.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 55% | View |
| MAL213669471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V RADIAL | 54% | View |
Submit your RFQ for 672D477F020EK4D and get a quote within 24 hours.
