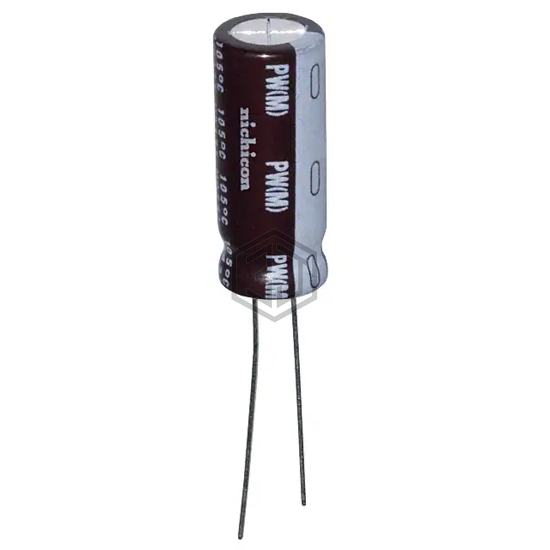

CAP ALUM 270UF 20% 50V RADIAL
UPW1H271MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,346
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | 82 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H271MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1H271MPD | Nichicon | CAP ALUM 270UF 20% 50V RADIAL | 97% | View |
| RXK271M1HBK-1025S | Surge | CAP ALUM 50V POLAR | 93% | View |
| UPW1J271MHH | Nichicon | CAP ALUM 270UF 20% 63V RADIAL | 86% | View |
| B41890A7277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 35V RADIAL | 83% | View |
| MAL213668271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 63V RADIAL | 74% | View |
| 860080374010 | Würth Elektronik | CAP ALUM 270UF 20% 16V RADIAL | 52% | View |
