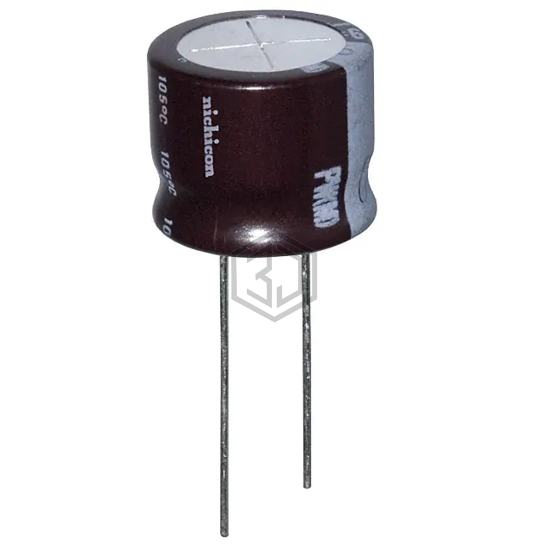

CAP ALUM 270UF 20% 63V RADIAL
UPW1J271MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,303
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 916.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.41 A @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J271MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1H271MPD | Nichicon | CAP ALUM 270UF 20% 50V RADIAL | 90% | View |
| RXK271M1HBK-1025S | Surge | CAP ALUM 50V POLAR | 88% | View |
| 860160675027 | Würth Elektronik | CAP ALUM 270UF 20% 50V RADIAL | 84% | View |
| MAL213658271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 63V RADIAL | 76% | View |
| B41890A7277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 35V RADIAL | 70% | View |
| 600D277F050DX4 | Vishay Sprague | CAP ALUM 270UF 50V AXIAL | 55% | View |
