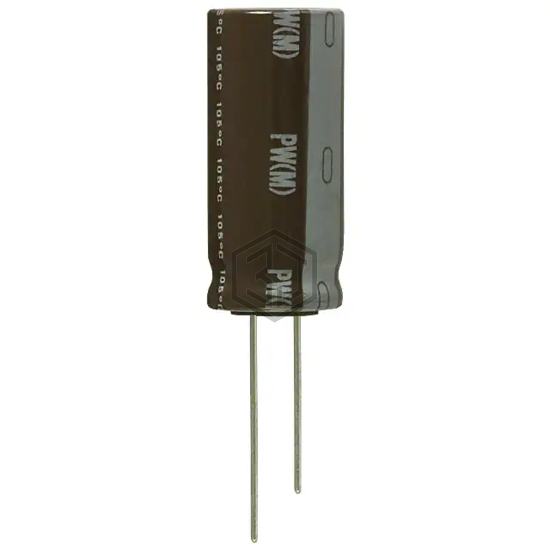

CAP ALUM 1500UF 20% 50V RADIAL
UPW1H152MHH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,570
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.372 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.79 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H152MHH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50PX1500MEFC16X25 | Rubycon | CAP ALUM 1500UF 20% 50V RADIAL | 100% | View |
| UPW1H152MHD6AA | Nichicon | CAP ALUM 50V POLAR | 100% | View |
| RXK152M1HBK-1636S | Surge | CAP ALUM 50V POLAR | 95% | View |
| B41858D7158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 35V RADIAL | 87% | View |
| UPS1H152MHD | Nichicon | CAP ALUM 1500UF 20% 50V RADIAL | 81% | View |
| 860160578034 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 76% | View |
Submit your RFQ for UPW1H152MHH6 and get a quote within 24 hours.
