CAP ALUM 1500UF 20% 50V RADIAL

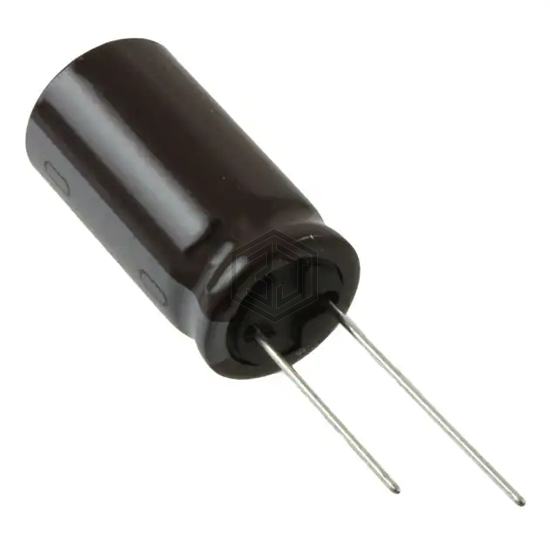

UPS1H152MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 161
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1H152MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160580035 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 75% | View |
| UPA1C152MPD1TD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 72% | View |
| UPA1C152MPD | Nichicon | CAP ALUM 1500UF 20% 16V RADIAL | 72% | View |
| UPA0J152MPD3TD | Nichicon | CAP ALUM 1500UF 20% 6.3V RADIAL | 68% | View |
| B41888C5158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 25V RADIAL | 65% | View |
| MAL213634152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 10V RADIAL | 57% | View |
Submit your RFQ for UPS1H152MHD and get a quote within 24 hours.
