CAP ALUM 100UF 20% 50V RADIAL

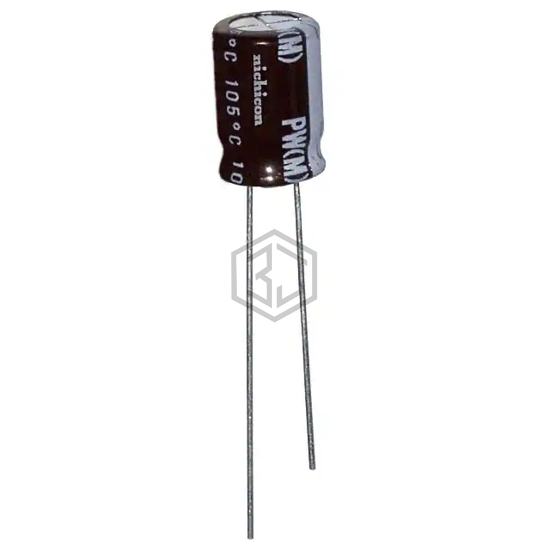

UPW1H101MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,212
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 315.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 485 mA @ 100 kHz |
| Impedance | 234 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H101MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213661101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 90% | View |
| B41858C6107M8 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 50V RADIAL | 80% | View |
| 860080674009 | Würth Elektronik | CAP ALUM 100UF 20% 50V RADIAL | 71% | View |
| UPX1V101MPD | Nichicon | CAP ALUM 100UF 20% 35V RADIAL | 70% | View |
| 678D107M025CC5D | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 65% | View |
| 50NXA100MEFC10X16 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for UPW1H101MPD and get a quote within 24 hours.
