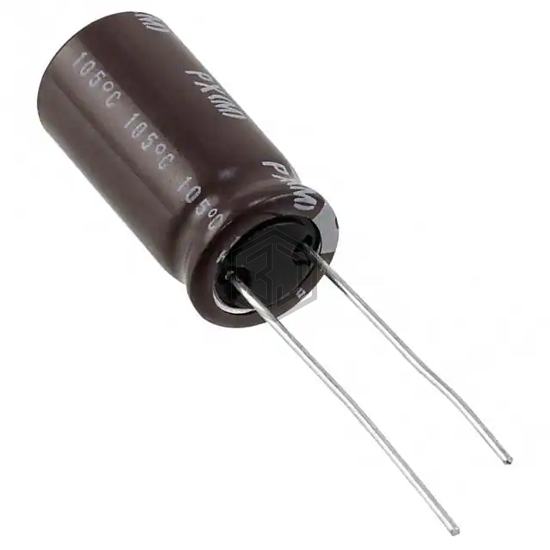

CAP ALUM 100UF 20% 35V RADIAL
UPX1V101MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,908
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 504 mA @ 120 Hz |
| Ripple Current @ High Frequency | 672 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1V101MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080674009 | Würth Elektronik | CAP ALUM 100UF 20% 50V RADIAL | 83% | View |
| UPV1E101MGD1TD | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 78% | View |
| B41858C6107M8 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 50V RADIAL | 77% | View |
| MAL212360101 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V AXIAL | 73% | View |
| MAL213661101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 61% | View |
| 678D107M025CC5D | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 53% | View |
