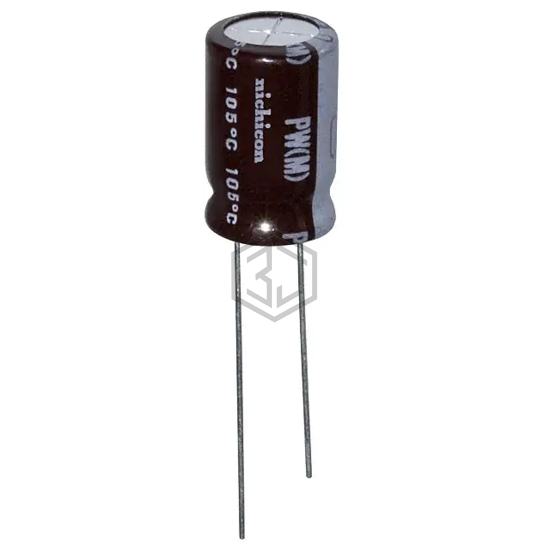

CAP ALUM 470UF 20% 25V RADIAL
UPW1E471MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,513
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 787.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E471MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25PX470MEFC8X11.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 81% | View |
| B41888C7477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 73% | View |
| URZ1J471MHD | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 72% | View |
| MAL215095475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 68% | View |
| 672D477F025DS4D | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 68% | View |
| ELXY500ETD471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 68% | View |
