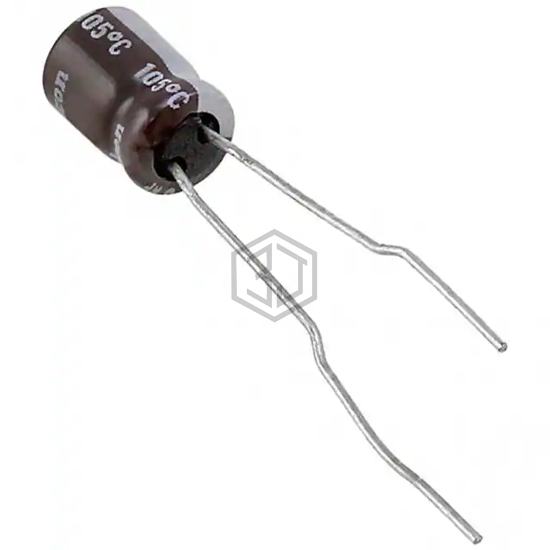

CAP ALUM 22UF 20% 25V RADIAL
UPW1E220MDD6TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,927
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 950 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E220MDD6TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1V220MED | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 75% | View |
| UST1C220MDD1TP | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 75% | View |
| UMF1V220MDD1TE | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 71% | View |
| SEK220M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V RADIAL | 67% | View |
| SEK220M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V RADIAL | 56% | View |
| 672D226H050CD5C | Vishay Sprague | CAP ALUM 22UF 50V RADIAL | 56% | View |
