CAP ALUM 1800UF 20% 25V RADIAL

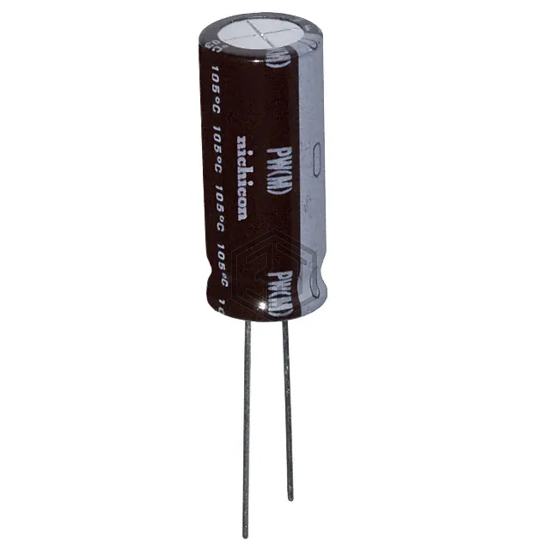

UPW1E182MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,001
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.964 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E182MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E182MHD1TO | Nichicon | CAP ALUM 1800UF 20% 25V RADIAL | 93% | View |
| EEU-FC1V182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 87% | View |
| MAL224650182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 85% | View |
| MAL224630182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 85% | View |
| ELBG350ELL182AL20S | United Chemi-Con | CAP ALUM 1800UF 35V RADIAL | 76% | View |
| MAL224631182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 70% | View |
Submit your RFQ for UPW1E182MHH and get a quote within 24 hours.
