CAP ALUM 1800UF 20% 25V RADIAL

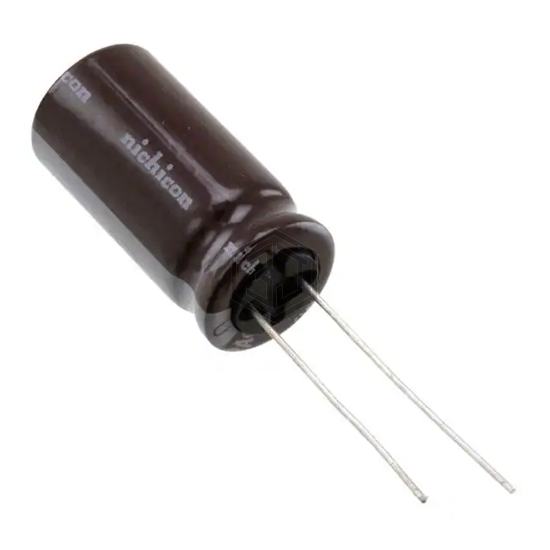

UPA1E182MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 389
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.499 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 85% | View |
| MAL224630182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 79% | View |
| ELBG350ELL182AL20S | United Chemi-Con | CAP ALUM 1800UF 35V RADIAL | 70% | View |
| MAL224631182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 64% | View |
| 860160375036 | Würth Elektronik | CAP ALUM 1800UF 20% 16V RADIAL | 61% | View |
| EEU-FC1A182 | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for UPA1E182MHD1TO and get a quote within 24 hours.
