CAP ALUM 120UF 20% 25V RADIAL

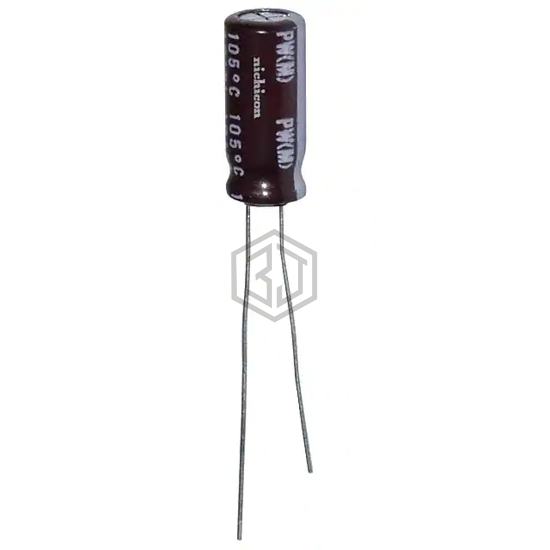

UPW1E121MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,117
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 279.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 430 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E121MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1V121MPD1TD | Nichicon | CAP ALUM 120UF 20% 35V RADIAL | 80% | View |
| EEU-FC1J121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 63V RADIAL | 66% | View |
| EEU-FC1H121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 63% | View |
| 601D127G050FE2 | Vishay Sprague | CAP ALUM 120UF 50V AXIAL | 56% | View |
| EG1H121MP50816F5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 55% | View |
| ELXY160ETD121MFB5D | United Chemi-Con | CAP ALUM 120UF 20% 16V RADIAL | 54% | View |
