Panasonic Electronic Components

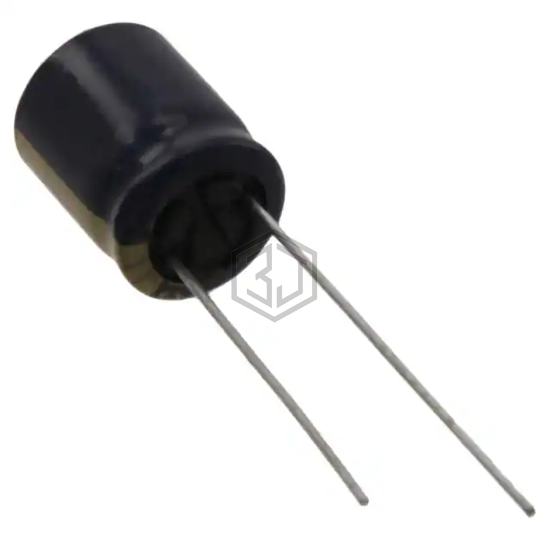

CAP ALUM 120UF 20% 50V RADIAL
EEU-FC1H121B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 120UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,051
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 399.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz |
| Impedance | 162 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D127G050FE2 | Vishay Sprague | CAP ALUM 120UF 50V AXIAL | 100% | View |
| UPW1H121MPD1TD | Nichicon | CAP ALUM 120UF 20% 50V RADIAL | 98% | View |
| UPW1H121MPD1TA | Nichicon | CAP ALUM 120UF 20% 50V RADIAL | 98% | View |
| EG1H121MP50816F5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 93% | View |
| EEU-FC1J121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 63V RADIAL | 91% | View |
| ELXZ500ELL121MJC5S | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 90% | View |
