CAP ALUM 5600UF 20% 16V RADIAL

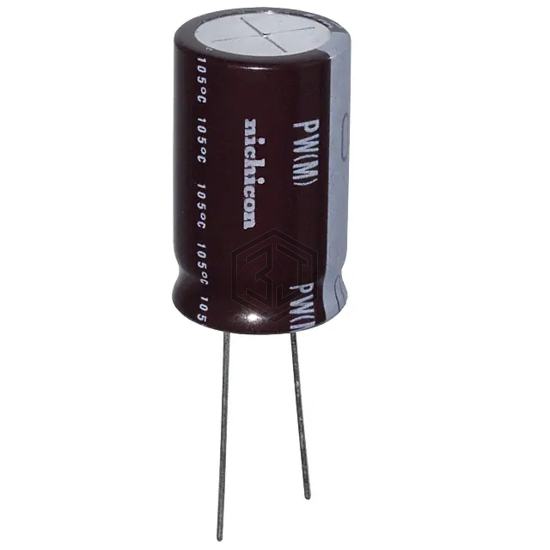

UPW1C562MHH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,389
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.635 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C562MHH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D568G015JL2 | Vishay Sprague | CAP ALUM 5600UF 15V AXIAL | 96% | View |
| ELXY160ELL562ML40S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 92% | View |
| EEU-FK1C562 | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RAD TH | 90% | View |
| UPA1A562MHD | Nichicon | CAP ALUM 5600UF 20% 10V RADIAL | 78% | View |
| 860160381046 | Würth Elektronik | CAP ALUM 5600UF 20% 16V RADIAL | 78% | View |
| B41888E3568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 72% | View |
