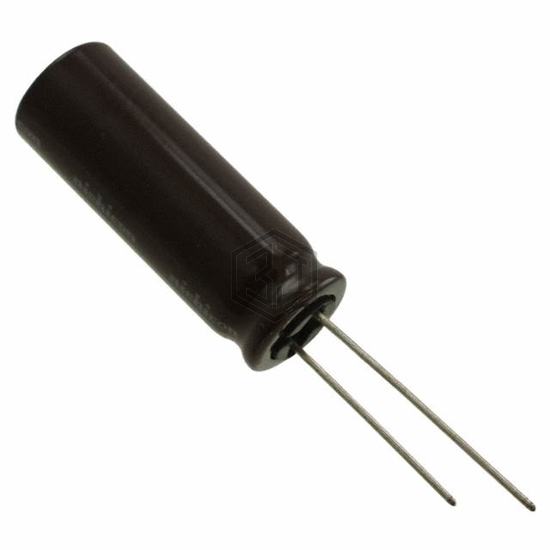

CAP ALUM 5600UF 20% 10V RADIAL
UPA1A562MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,914
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.499 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.94 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888E3568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 92% | View |
| ELXY160ELL562ML40S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 86% | View |
| EEU-FK1C562B | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RAD TH | 82% | View |
| 601D568G015JL2 | Vishay Sprague | CAP ALUM 5600UF 15V AXIAL | 74% | View |
| EEU-FK0J562S | Panasonic Electronic Components | CAP ALUM 5600UF 20% 6.3V RAD TH | 71% | View |
| EEU-HD1E562B | Panasonic Electronic Components | CAP ALUM 5600UF 20% 25V RADIAL | 61% | View |
Submit your RFQ for UPA1A562MHD and get a quote within 24 hours.
