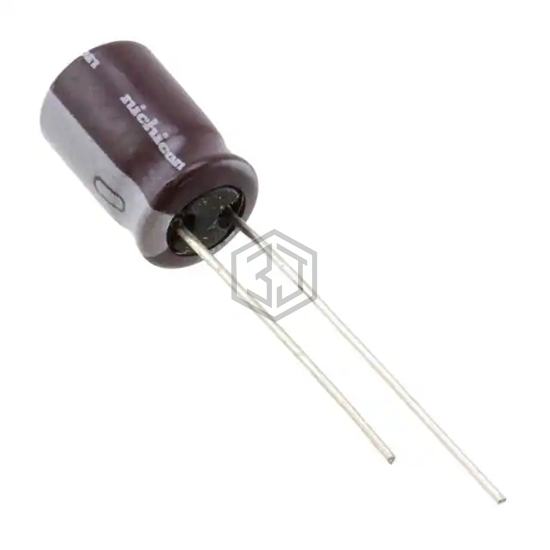

CAP ALUM 330UF 20% 16V RADIAL
UPW1C331MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,091
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 117 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C331MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ16VB331M8X12LL | United Chemi-Con | CAP ALUM 330UF 20% 16V RADIAL | 93% | View |
| ECA-1CHG331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V RADIAL | 89% | View |
| 672D337H020DM5C | Vishay Sprague | CAP ALUM 330UF 20V RADIAL | 86% | View |
| B41858C5337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 25V RADIAL | 78% | View |
| EEU-HD1A331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V RADIAL | 61% | View |
| UBX1A331MPL | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 52% | View |
Submit your RFQ for UPW1C331MPD1TA and get a quote within 24 hours.
