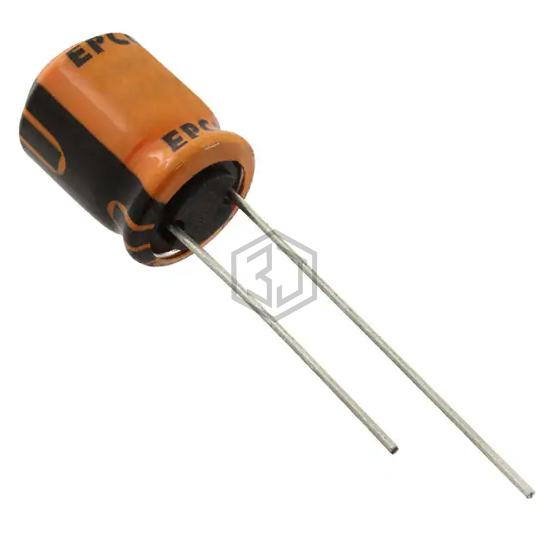

CAP ALUM 330UF 20% 25V RADIAL
B41858C5337M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,202
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 129mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 746 mA @ 100 kHz |
| Impedance | 113 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1E331MPD6CV | Nichicon | CAP ALUM 25V POLAR | 99% | View |
| 672D337H020DM5C | Vishay Sprague | CAP ALUM 330UF 20V RADIAL | 86% | View |
| KMG25VB331M8X11LL | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 85% | View |
| UPW1C331MPD1TA | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 78% | View |
| LXZ16VB331M8X12LL | United Chemi-Con | CAP ALUM 330UF 20% 16V RADIAL | 76% | View |
| ECA-1CHG331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V RADIAL | 61% | View |
