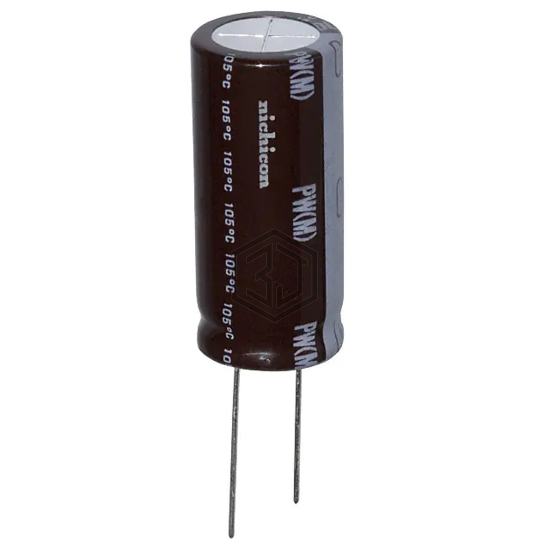

CAP ALUM 10000UF 20% 16V RADIAL
UPW1C103MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,856
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.23 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C103MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW103M1ABK-1836S | Surge | CAP ALUM 10V POLAR | 81% | View |
| B41858C3109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 10V RADIAL | 80% | View |
| UVZ1C103MHH | Nichicon | CAP ALUM 10000UF 20% 16V RADIAL | 78% | View |
| ELXZ6R3ELL103MM25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 64% | View |
| SEK103M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 10V RADIAL | 63% | View |
| EKMG100ELL103MLP1S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 58% | View |
Submit your RFQ for UPW1C103MHH and get a quote within 24 hours.
