Cornell Dubilier Electronics (CDE)

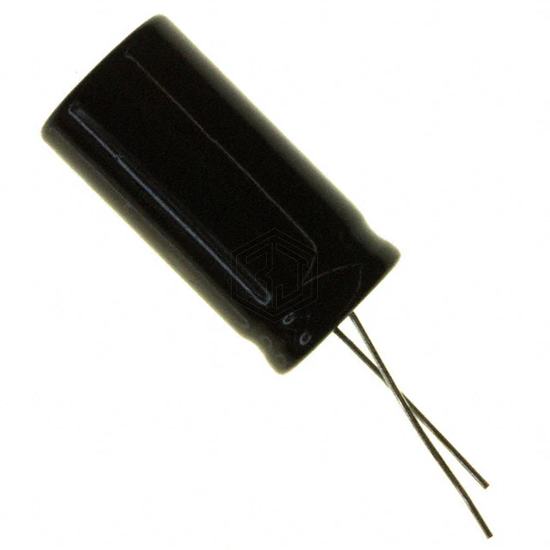

CAP ALUM 10000UF 20% 10V RADIAL
SEK103M010ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.376 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG10VB103M16X25LL | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 100% | View |
| B41042A3109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 10V RADIAL | 86% | View |
| UVZ1C103MHH | Nichicon | CAP ALUM 10000UF 20% 16V RADIAL | 85% | View |
| RXW103M1ABK-1836S | Surge | CAP ALUM 10V POLAR | 83% | View |
| UPW1A103MHH | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 79% | View |
| B41888C4109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for SEK103M010ST and get a quote within 24 hours.
